74CJ-APT Kelvin Probe

Force-Sense Connection
Low Noise Triaxial
CV Measurements

Overview

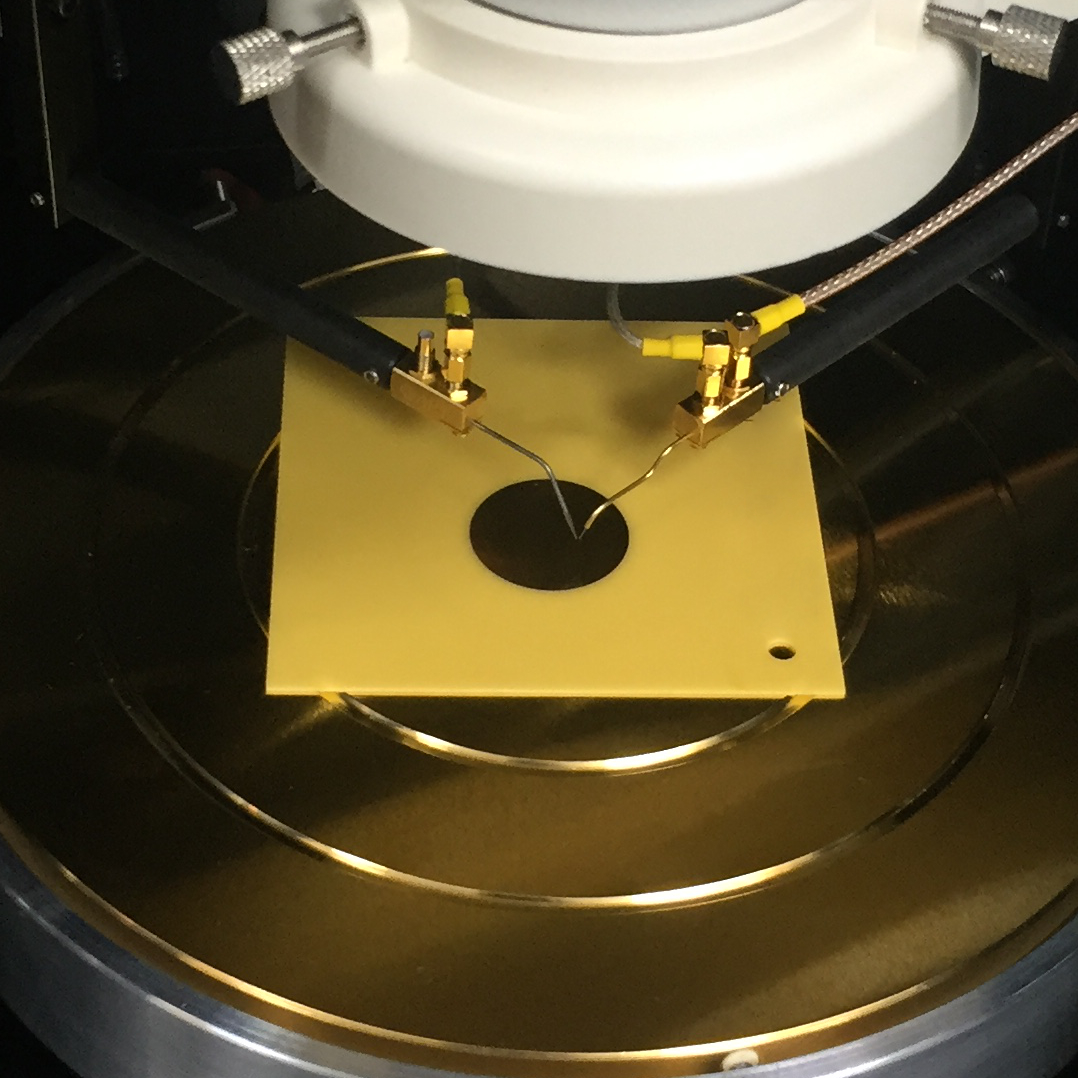

The APT Kelvin probe is the perfect companion with Everbeing micropositioners to perform low noise triaxial measurements and CV measurements. The dual-SSMC connection allows force and sense connections for higher precision in measuring small fA range currents.

  • Current leakage: < 10 fA.
  • Frequency: > 150 MHz
  • Capacitance (Guarded): < 10 fF
  • Impedance: 50 Ohm
  • Power Handling: > 125 Watts @ 18-21 Deg. C
  • Voltage Rating: > 250 Volts RMS @ sea level
